10 Ton Electric Chain Hoist

Introduction to Dongqi Crane’s 10 Ton Electric Chain Hoists

Dongqi Crane presents its premium line of 10 ton electric chain hoists, engineered to deliver exceptional performance in the most demanding industrial environments. As a leading manufacturer of material handling equipment, we offer three specialized configurations – low headroom, fixed, and trolley-mounted models – each designed to address specific lifting challenges while maintaining the highest standards of safety and efficiency.

Why Choose a 10 Ton Electric Chain Hoist from Dongqi Crane?

Unmatched Performance Features

• Precision lifting with variable speed control (standard 3/1 m/min dual-speed options)
• Thermally protected motors ensure continuous operation without overheating
• Grade 80/100 alloy steel chains for maximum durability and safety
• IP55 protection rating against dust and water ingress
• Overload protection system prevents damage from excessive loads

Industry-Leading Safety Systems

• Dual braking mechanism with emergency stop function
• Automatic load holding brake system
• Phase protection to prevent reverse operation
• Thermal cut-off for motor protection

Detailed Model Specifications

1. Low Headroom 10 Ton Electric Chain Hoist

(Optimized for spaces with vertical clearance limitations)

Key Advantages:

• Space-saving design with minimal hook approach
• Smooth operation ideal for precision placement
• Reduced sway during lifting operations

Technical Specifications:

Parameter	Specification
Capacity	10 tons
Lifting Speed	3/1 m/min (dual speed)
Chain Diameter	14mm (Grade 80)
Motor Power	7.5 kW
Protection Class	IP55
Dimensions (LxWxH)	700 x 450 x 500 mm
Weight	650 kg

Best Applications:

• Automotive assembly lines
• Manufacturing facilities with low ceilings
• Maintenance operations in confined spaces

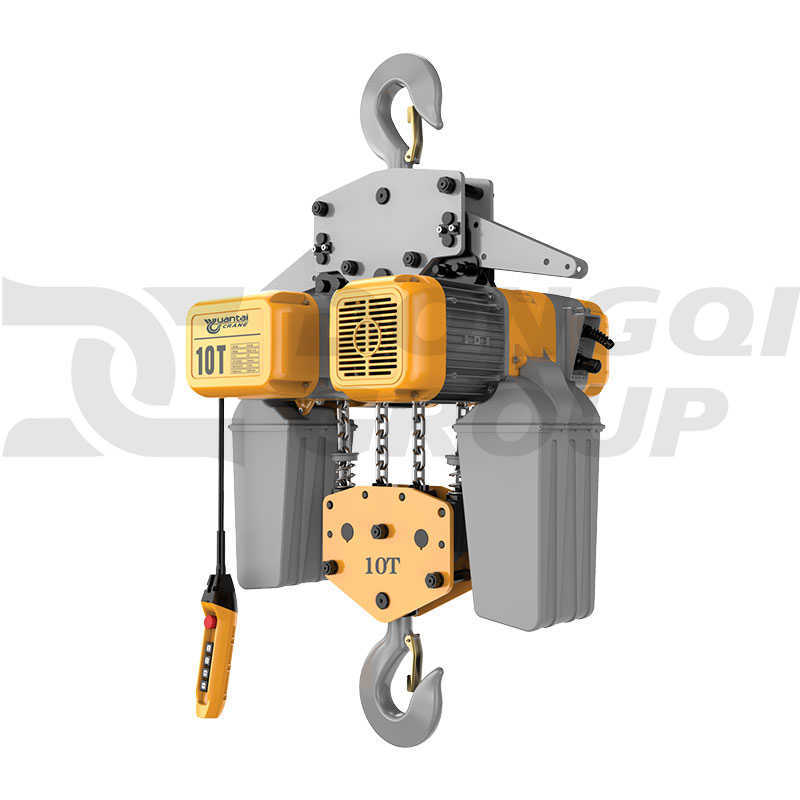

2. Fixed Mount 10 Ton Electric Chain Hoist

(Designed for stationary heavy-duty lifting)

Key Advantages:

• Robust construction for continuous operation
• Easy installation with bolt-on mounting system
• High duty cycle (40% ED standard)

Technical Specifications:

Parameter	Specification
Capacity	10 tons
Lifting Speed	5/1 m/min
Chain Diameter	16mm (Grade 100)
Motor Power	10 kW
Protection Class	IP54
Dimensions (LxWxH)	800 x 500 x 600 mm
Weight	850 kg

Best Applications:

• Steel fabrication shops
• Power plant maintenance
• Heavy equipment repair facilities

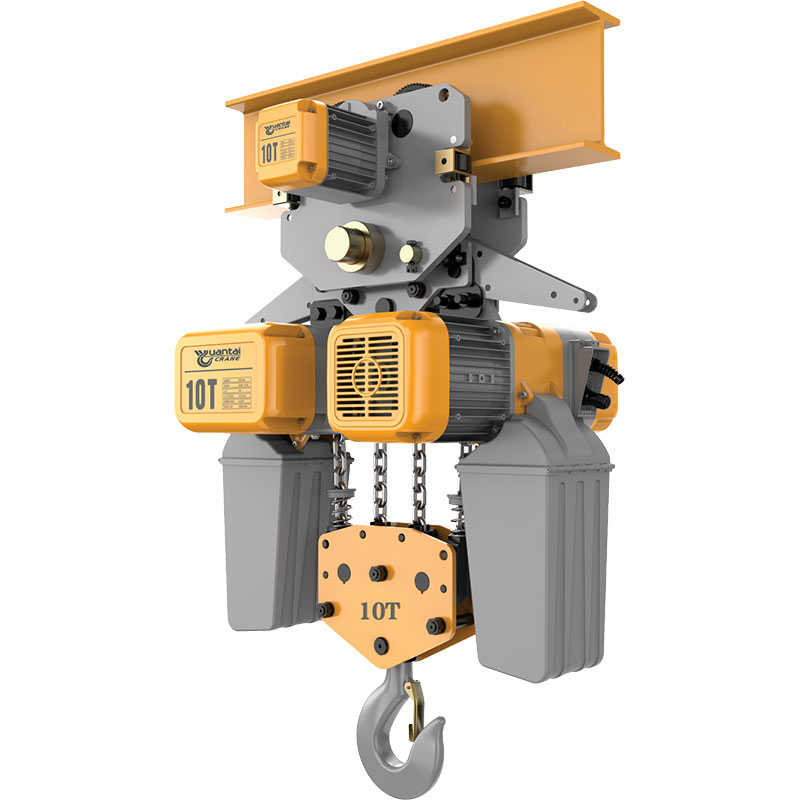

3. Trolley-Mounted 10 Ton Electric Chain Hoist

(For applications requiring horizontal movement)

Key Advantages:

• Motorized travel along I-beam tracks (20 m/min standard)
• Anti-sway technology for precise load positioning
• Versatile control options (pendant or wireless remote)

Technical Specifications:

Parameter	Specification
Capacity	10 tons
Lifting Speed	4/0.8 m/min
Travel Speed	20 m/min
Chain Diameter	14mm (Grade 80)
Motor Power	7.5 kW (lifting), 1.5 kW (travel)
Protection Class	IP55
Dimensions (LxWxH)	900 x 550 x 650 mm
Weight	950 kg

Best Applications:

• Warehouse material handling
• Shipbuilding operations
• Large-scale manufacturing assembly lines

10 Ton Electric Chain Hoist Price Considerations

The 10 ton electric chain hoist price varies based on several factors:

Price Range by Model:

• Low Headroom Model: $3,200 – $4,800
• Fixed Mount Model: $3,000 – $4,500
• Trolley-Mounted Model: $4,000 – $6,500

Factors Affecting Price:

1. Speed Options: Dual-speed models command a 15-20% premium
2. Control Systems: Wireless remote adds approximately $500
3. Special Features: Explosion-proof versions cost 25-30% more
4. Customization: Special chain lengths or voltages may increase price

Dongqi Crane offers exceptional value with:

• Direct factory pricing (no middlemen)
• Comprehensive 2-year warranty
• Free technical support
• Global shipping options

Why Dongqi Crane Offers the Best 10 Ton Electric Chain Hoist

Competitive Advantages:

Feature	Dongqi Crane	Industry Standard
Motor Efficiency	20% more energy efficient	Standard efficiency
Duty Cycle	40% ED standard	Typically 30% ED
Safety Features	Dual brake system	Single brake
Chain Quality	Grade 80/100 alloy	Grade 70 common
Warranty	2 years comprehensive	1 year limited

Performance Benefits:

• 30% longer service life than comparable models
• Reduced maintenance costs through superior engineering
• Higher productivity with smoother operation
• Better ROI through energy savings and durability

10 Ton Electric Chain Hoist Dimensions – Space Optimization

Proper understanding of 10 ton electric chain hoist dimensions is crucial for installation planning:

Key Dimension Considerations:

1. Headroom Requirements:

• Low headroom model saves up to 30% vertical space
• Standard models require 600-800mm clearance

1. Work Area Planning:

• Trolley-mounted units need I-beam track clearance
• Fixed models require sturdy mounting structure

1. Doorway and Access:

• Compact dimensions facilitate easier installation
• Modular design allows disassembly for tight spaces

Finding a 10 Ton Electric Chain Hoist for Sale

When searching for a 10 ton electric chain hoist for sale, consider:

Purchasing Options:

• Direct from Dongqi Crane Factory:
  • Best pricing (no distributor markup)
  • Custom configuration available
  • OEM services for large orders

Special Offers:

• Volume discounts for multiple units
• Package deals with accessories
• Seasonal promotions (check our website)

Conclusion: The Smart Choice for Heavy Lifting

Dongqi Crane’s 10 ton electric chain hoists represent the pinnacle of lifting technology, offering:

✔ Three specialized configurations for any application
✔ Superior engineering with premium components
✔ Competitive pricing with exceptional value
✔ Global support network for peace of mind

Contact Dongqi Crane today for a personalized quote and discover why professionals worldwide trust our lifting solutions!

---
