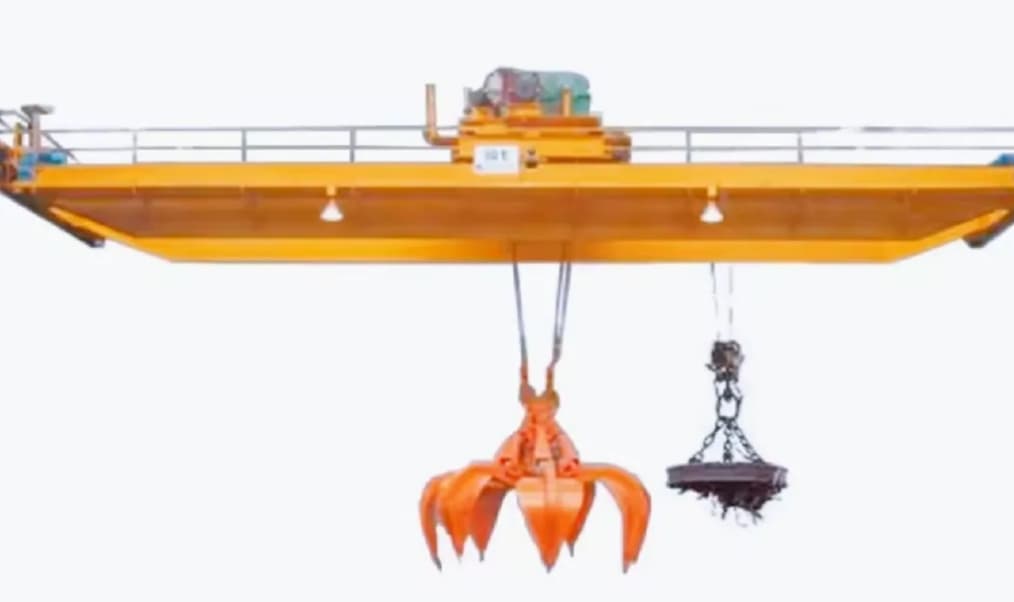

Dual-Purpose Efficiency: A Technical & Commercial Analysis of Dongqi’s CE-Certified Double-Girder Grab & Magnet Overhead Crane for Metal Processing

Abstract: In the dynamic environment of modern metal processing facilities, material diversity—ranging from raw scrap and coils to finished sheets and structurals—poses a persistent logistical challenge. Dongqi’s Double-Girder Dual-Purpose Overhead Crane presents a transformative solution, integrating a grab bucket and an electromagnetic lifter into a single, robust system. This article provides a comprehensive analysis for procurement decision-makers, dissecting how this crane’s design directly translates into operational flexibility, long-term reliability, and enhanced return on investment (ROI) for metal processing applications.

1. Core Functionality: The “Dual-Purpose” System as an Operational Advantage

The fundamental value proposition lies in its integrated dual-functionality, designed to streamline workflows in metal yards, foundries, and fabrication shops.

1.1 Modular Quick-Change System

• Engineered Interface: The system features a standardized, robust connection point (utilizing precision pins and multi-coupling hydraulic/electrical connectors) that allows for safe, tool-less switching between the grab and magnet in minutes, not hours. This minimizes downtime between handling different material types.
• Unified Control Scheme: Operators control both functions seamlessly from a single cabin or remote control system. The integrated circuitry automatically manages power switching and safety interlocks, ensuring intuitive and error-free operation.

1.2 Grab Bucket Unit: For Handling Bulk & Scrap Metals

• Optimized for Metal Scrap: The hydraulic multi-tine grab is specifically designed for the high density and irregular shapes of metal scrap, turnings, and chips. Its tine geometry and closing force ensure high fill rates and efficient handling.
• Process Integration: Ideal for feeding furnaces, loading/unloading scrap from vehicles, and organizing raw material stockpiles, replacing multiple pieces of equipment with one flexible unit.

1.3 Application Scenario in Metal Processing: Maximizing Flow

A typical workflow demonstrates its efficiency: The crane uses its electromagnetic lifter to unload and stack incoming steel plates or coils from a truck with precision. For the same job, it then swiftly switches to the grab bucket to handle the scrap bundles or slag generated from cutting and processing, clearing the floor and feeding the scrap hopper. This creates a continuous, closed-loop material flow handled by a single asset.

2. Structural Integrity: The Double-Girder Design for Lifetime Reliability

The choice of a double-girder bridge is a critical investment in uptime and durability, especially for the demanding cycles of metal processing.

2.1 Superior Load Management & Performance

• Enhanced Stability & Precision: Compared to single-girder designs, the double-girder configuration provides a far more rigid load path. This significantly reduces hook swing and deflection, enabling precise positioning of heavy loads—a crucial factor when placing costly coils or finished plates.
• Built for Heavy-Duty Cycles: This inherent strength is aligned with higher FEM/ISO work classes (e.g., A5/A6), meaning the crane is engineered for intensive use with high reliability, directly impacting long-term maintenance costs and service life.

2.2 Key Engineering Features for Durability

• Robust Construction: The main girders are fabricated from high-grade steel as optimized box sections. Critical welds undergo Non-Destructive Testing (NDT) to ensure integrity.
• Advanced Drive System: The “three-in-one” drive units (integrating motor, brake, and gearbox) offer proven reliability, easy maintenance, and efficient power transmission. The end trucks often feature double-flanged wheels with horizontal guides for smooth, aligned travel along the runway.

3. Safety & Compliance: CE Certification as Your Risk Mitigation Strategy

For a procurement executive, CE certification is not just a label; it is a comprehensive risk management and quality assurance system.

3.1 The Substance Behind the CE Mark

• Legal Compliance Gateway: The crane’s full compliance with the EU Machinery Directive (2006/42/EC) and related standards (EN 15011 for cranes) is legally validated. This ensures unimpeded market access in Europe and signals a product built to globally recognized safety benchmarks, reducing corporate liability.
• Documented Assurance: Compliance is backed by a complete Technical Construction File, including risk assessments, design calculations, and test reports—providing full transparency and traceability.

3.2 Multi-Layer Safety Architecture

• Electrical Safety: The panel is built with premium components (e.g., Schneider Electric, Siemens) and features IP54+ protection, emergency stop circuits, and comprehensive phase-loss/overload protection.
• Critical Mechanical Protections: The system includes redundant limit switches, an electronic overload limiter, anti-collision systems, and buffers—all working to prevent accidents and protect both the load and the capital investment in the crane itself.

4. The Dongqi Proposition: A Partnership for Productivity

Choosing Dongqi extends beyond purchasing equipment; it is an investment in a tailored solution and long-term operational support.

4.1 Customization for Your Specific Layout

• Solution-Based Design: Dongqi engineers work from your specific plant layout, process flow, and peak capacity needs to recommend optimal span, lifting height, and capacity, ensuring the crane integrates perfectly into your operation.
• Lifecycle Support: The partnership includes professional installation supervision, operator training, and access to preventive maintenance plans and spare parts, maximizing equipment availability over its entire lifecycle.

4.2 Engineered for Dependability

• Quality at the Core: Critical components are sourced from trusted global or top-tier domestic suppliers, ensuring reliability from the ground up.
• Verification Before Delivery: Every crane undergoes rigorous pre-delivery testing, including 125% Static Load and 110% Dynamic Load tests, with documented evidence provided, guaranteeing performance as specified.

Conclusion: A Strategic Asset for the Future

The Dongqi CE-Certified Double-Girder Grab & Magnet Crane is more than a lifting device; it is a strategic tool for enhancing metal processing productivity. By consolidating multiple material handling needs into one reliable, safe, and flexible asset, it reduces capital expenditure, optimizes floor space, and streamlines operations. Its robust build and intelligent design protect your investment today, while its inherent adaptability safeguards its relevance for the challenges of tomorrow.
