From Docks to Construction Sites: Performance Testing of Single-Girder Gantry Cranes in 5 Key Scenarios

Introduction: The Technical Advantages of Single-Girder Gantry Cranes

Single-girder gantry cranes, engineered by Dongqi Crane, are a cost-effective and versatile solution for material handling across industries. Their lightweight yet robust design makes them ideal for applications where space constraints, rapid deployment, and budget efficiency are critical.

Key Features & Competitive Edge

  • Structural Efficiency: Single main girder with end trucks (wheel or rail-mounted), reducing weight by 30-50% compared to double-girder models.
  • Performance Range:
    • Lifting Capacity: 3–32 tons
    • Span: 4.5–30+ meters
    • Lifting Height: 3–18+ meters
    • Duty Class: A3/A4 (moderate to heavy usage)
  • Economic Benefits: Lower initial cost, reduced foundation requirements, and faster installation.

Testing Methodology

Dongqi Crane conducted real-world performance tests in five industrial scenarios, measuring:
✔ Precision (positioning accuracy)
✔ Cycle Time (load/unload speed)
✔ Energy Consumption (AC/DC motor efficiency)
✔ Failure Rate (MTBF – Mean Time Between Failures)
✔ Site Adaptability (terrain, space, weather resistance)

5-ton single-girder gantry crane

Chapter 1: Performance Testing in 5 Key Scenarios

1. Construction Sites: High-Rise Steel Structure Installation

Challenge: Long spans (>20m), wind resistance, and precise load placement.

Dongqi Solution:

  • Patented Reinforced Girder Design for 31.5m spans with 5–10-ton capacity.
  • Anti-Sway Control System reduces load oscillation, achieving ≤5cm positioning error.

Performance Data:
✅ 40% faster daily lifting cycles vs. traditional tower cranes.
✅ 60% reduction in tower crane dependency.

Case Study: A high-rise project in Shanghai used Dongqi’s gantry crane for steel beam placement, cutting installation time by 3 weeks.

2. Ports & Warehouses: Container & Bulk Cargo Handling

Challenge: High-frequency operation, corrosion resistance, and maneuverability.

Dongqi Solution:

  • Remote-Controlled 10-ton Gantry Crane (Indonesia port case):
    • 6.4m span, 30 containers/hour (200% faster than forklifts).
    • Crab steering for tight-space navigation.
  • Galvanized steel construction for saltwater corrosion resistance.

Economic Impact:
💰 ROI <2 years compared to mobile cranes.

3. Factory Workshops: Production Line Material Flow

Challenge: Precision loading, low vibration, and worker safety.

Dongqi Solution:

  • Low Headroom Design: Maximizes vertical space.
  • VFD (Variable Frequency Drive): Reduces energy use by 25% and minimizes jerk during starts/stops.

Efficiency Comparison:

TaskForklift (hrs)Dongqi Crane (hrs)
Machine Mold Change2.51.2
Assembly Line Supply3.01.8

4. Equipment Maintenance & Special Operations

Challenge: Mobility, corrosion resistance, and safety compliance.

Dongqi Solution:

  • Aluminum Alloy (6061-T6) Portable Gantry Crane:
    • 40% lighter than steel, ideal for shipyard engine maintenance.
  • Explosion-Proof Variant: For chemical plants, with emergency braking & overload protection.

Key Benefit:
🛠️ Assembly time <4 hours (no foundation required if concrete ≥20cm thick).

5. Temporary Projects & Emergency Lifting

Challenge: Rapid deployment, adjustable configurations.

Dongqi Solution:

  • Foldable/Height-Adjustable Gantry Crane (Senegal case):
    • 5-ton capacity, adjustable from 3.4m to 5.1m for low-clearance warehouses.
    • 60% smaller storage footprint when disassembled.

Cost Advantage:
💵 Rental cost = 20% of mobile crane alternatives.

Chapter 2: Technology Trends & Customization

2.1 Advanced Design Features

  • Truss Girder: Enhanced wind resistance (for outdoor sites).
  • L-Shaped Cantilever: Extended reach for oversized loads.

2.2 Smart Features

  • Anti-Collision System (multi-crane coordination).
  • Remote Monitoring & Automated Positioning.

Chapter 3: Conclusion – Selection Guide & Future Outlook

Performance Ranking by Scenario

ScenarioEfficiencyCost-EffectivenessSafety
Ports/Warehouses★★★★☆★★★★☆★★★★
Factory Workshops★★★★★★★★★☆★★★★☆
Construction Sites★★★★★★★☆★★★
Equipment Maintenance★★★☆★★★★★★★★☆
Temporary Projects★★★★★★★★★★★☆

Selection Guide

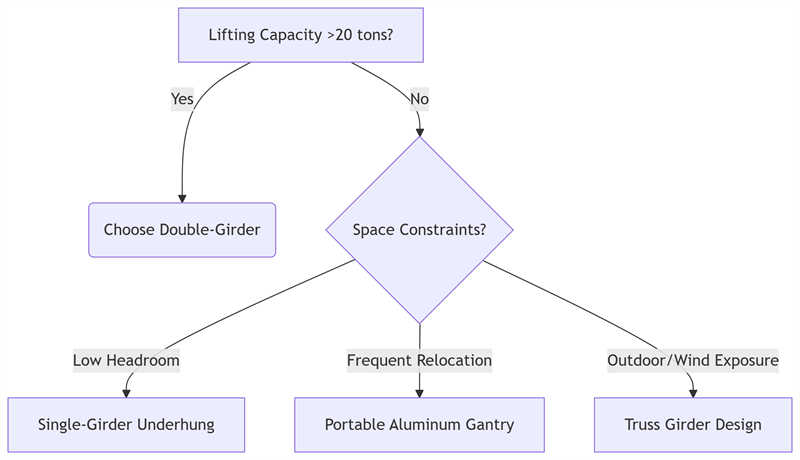

How to Choose the Right Crane

Future Innovations

🔹 Lightweight Materials (Carbon fiber integration)
🔹 AI-Powered Load Scheduling
🔹 Hybrid/Electric Power Options

Appendix: Data Sources

  • Patent: Reinforced Single-Girder Design
  • Case Studies: Indonesia Port, Senegal Warehouse, Shanghai Construction Site
  • Technical References: DGCRANE Aluminum Gantry Specs, STAHL CraneSystems Safety Standards

This Dongqi Crane report provides data-backed insights for engineers, project managers, and procurement teams evaluating single-girder gantry cranes. With proven efficiency across five critical scenarios, these cranes deliver optimal performance, safety, and ROI.

Contact Dongqi Crane for customized lifting solutions!

Key Takeaways

✅ 40% faster steel installation in construction.
✅ 200% efficiency gain in port logistics.
✅ 25% energy savings with VFD in factories.
✅ ROI <2 years in high-usage environments.
